Description

A solid brass oval cylinder with thumbturn, available in either polished brass finish or plated in satin nickel.

This is a standard shape oval cylinder and is therefore compatible with the complete range of oval-profile, lever-lock door handles and oval-profile mortice locks.

Please note; measurements are taken from the edge of the lock to the centre.

This euro cylinder works off a 2.85mm thick, reversible dimple (or “flat”) key, with anti drill protection in both the cylinder body and the plug. It also offers effective protection against unauthorised duplication of keys.

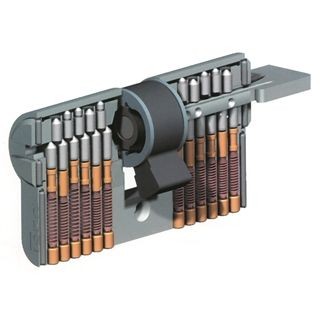

Comprising eleven pins (including “anti-pick” spool pins), this cylinder is supplied with three keys as standard or two keys for “Keyed Alike” and “Masterkey” suites. This euro cylinder can be suited to work with any of the other ISEO R11 locks available (oval profile, rim etc).

Each cylinder comes with its own, unique set of keys or, if buying more than one set, can be supplied “Keyed Alike” or as a “Masterkey Suite”.

Keyed Alike – Each cylinder works off the same key

Masterkey Suite- Each cylinder can work off a separate key, with an additional key which will open them all

Please contact us at the email address below if you would like to discuss Keyed Alike or Masterkey Suites.

Dimensions

30-30mm
35-35mm
40-40mm

Set Items

Each Oval Cylinder Set Contains:
1 x Oval Cylinder
1 x Fixing Bolt
3 x Keys (2 keys if suited)
1 x Keycode Card

Lead Times & Delivery

Please note, we usually have these oval cylinders dispatched within three working days.
If you would like to check stock levels before ordering, please mail us at the email address below.

We are happy to export orders outside of the UK. Please mail us at the email address below and we will send you a quote with estimated lead time:
[email protected]
