Description

Please note; this is a 5 Lever Lock, not a BS3621 insurance graded lock

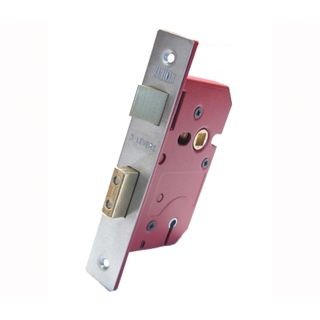

A good quality mortice sashlock, for use when a British standard, insurance graded lock isn’t required.

These sashlocks have standard 57mm centres (the measurement from the centre of the spindle to the centre of the keyway) and so are compatible with the complete range of lever on plate door handles.

Please remember to check the “backset” size when ordering. This is the distance from the edge of the door to the centre of the keyway.

Dimensions

Size	Backset	Centres	Case Size	Faceplate
2.5”	44mm	57mm	65 x 108mm	153 x 25mm
3”	57mm	57mm	77 x 108mm	153 x 25mm

Set Items

Each Sashlock Set Contains:
1 x 5 Lever Sashlock
1 x Strike Plate (Frame Side)
1 x Cover Plate for Lock
2 x Keys
Fixing Screws

Lead Times & Delivery

Please note, we usually have these sashlocks dispatched within three working days.
If you would like to check stock levels before ordering, please mail us at the email address below.

We are happy to export orders outside of the UK. Please mail us at the email address below and we will send you a quote with estimated lead time:
[email protected]
